DC4 Integra

dc4

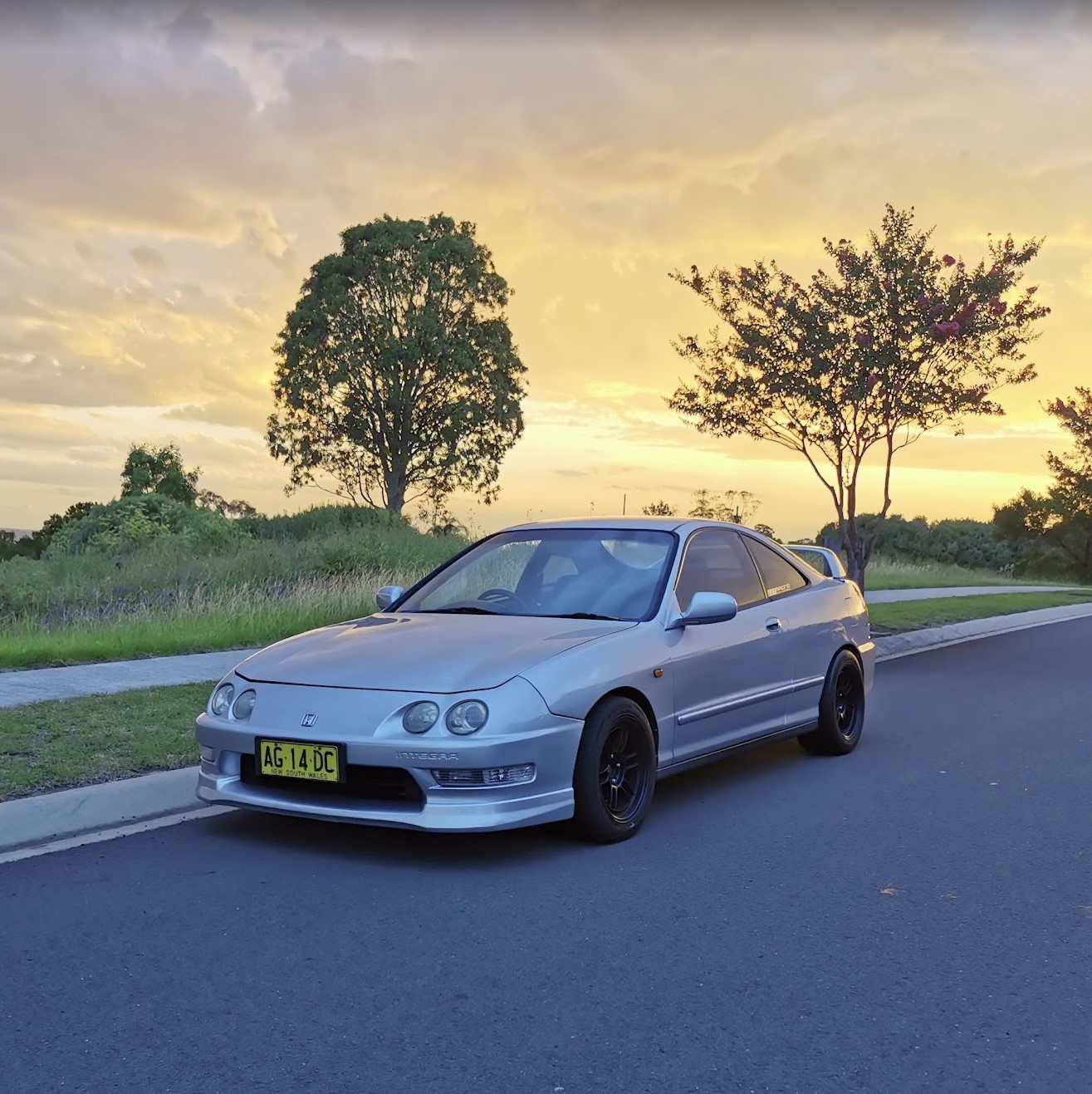

Taken a couple weeks before it was sold

Made 144kW and 218Nm with a rev limit of 8500 RPM. VTEC engagement at 4500, with peak torque just after that and a solid powerband till redline.

Specs
  • Engine and Accessories
    • K24A3 around 130,xxx
      • Replaced Timing Chain Tensioner, Chain, Chain Guides
      • DC5R Oil Pump & Chains
      • Valve Adjustment
      • All Major Seals Replaced
    • OEM 50degree VTC
    • KTuned Coolant Block Off Plate
    • Hasport 62A EGK2 Engine Mounts, on the higher setting for oil pan clearance
    • DC5R Engine Loom and DIY Charge Harness
    • JDMYard Conversion Harness
    • Haltech Platinum PRO EP3R ECU
    • DC5R Intake Manifold & Throttle Body (62mm)
    • Acuity Throttle Position Sensor
    • D Series Throttle Cable
    • Speedflow Fittings and lines (from MSCN)
    • DC5 OEM Radiator
    • DC5/CL9 OEM Coolant Hoses
    • K24 OEM AC Compressor
    • K24 OEM Alternator
    • K24 OEM Power Steering Pump & DC5R OEM Power Steering Hardline
  • Fuel
    • Walbro 225lph Pump
    • K24 Fuel Rail
    • Honda OEM RDX 410cc Injectors
    • Turbosmart FPR8 Fuel Pressure Regulator with Gauge
  • Exhaust
    • PLM Tri-Y Headers, modified to provide clearance for shifter
    • Hume Mufflers 2.5inch Stainless Exhaust System
    • Northmead Performance Muffler
  • Transmission
    • DC5 Type S Gearbox
    • MFactory 1.5Way Differential
    • Hybrid Racing V1 No-Cut Shifter with OEM Cables
    • KTuned VSS Converter for accurate speedometer reading
    • JDMYard Stainless Steel Clutch Line
    • Custom DC5R Axles with DC2 Outers to match hubs (A&L Drive Shafts)
    • Exedy OE Replacement Clutch
    • Machined DC5R Flywheel
  • Brakes & Wheels
    • CRV Front Calipers (ITR spec)
    • 280mm RDA Mini Cooper Discs
    • Front & Rear Intima SS Brake Pads
    • Enkei RPF1s, 15x8 +28
    • Hankook 225/45 RS4s Front, 225/45 RS3s Rear
  • Suspension
    • BC Gold Coilovers with billet Rear LCA similar to BWR (Eyelet type)
    • Hardrace Roll Centre Adjusters
    • Hardrace Rear Upper Camber Arms
    • Hardrace Front Upper Camber Arms
    • Replaced Trailing Arm Bushings (late 2021)
  • Misc/Exterior
    • OEM DC2R Spoiler
    • OEM DC2R Front Lip
    • Aftermarket Alarm & Central Locking System
